Cloudliner

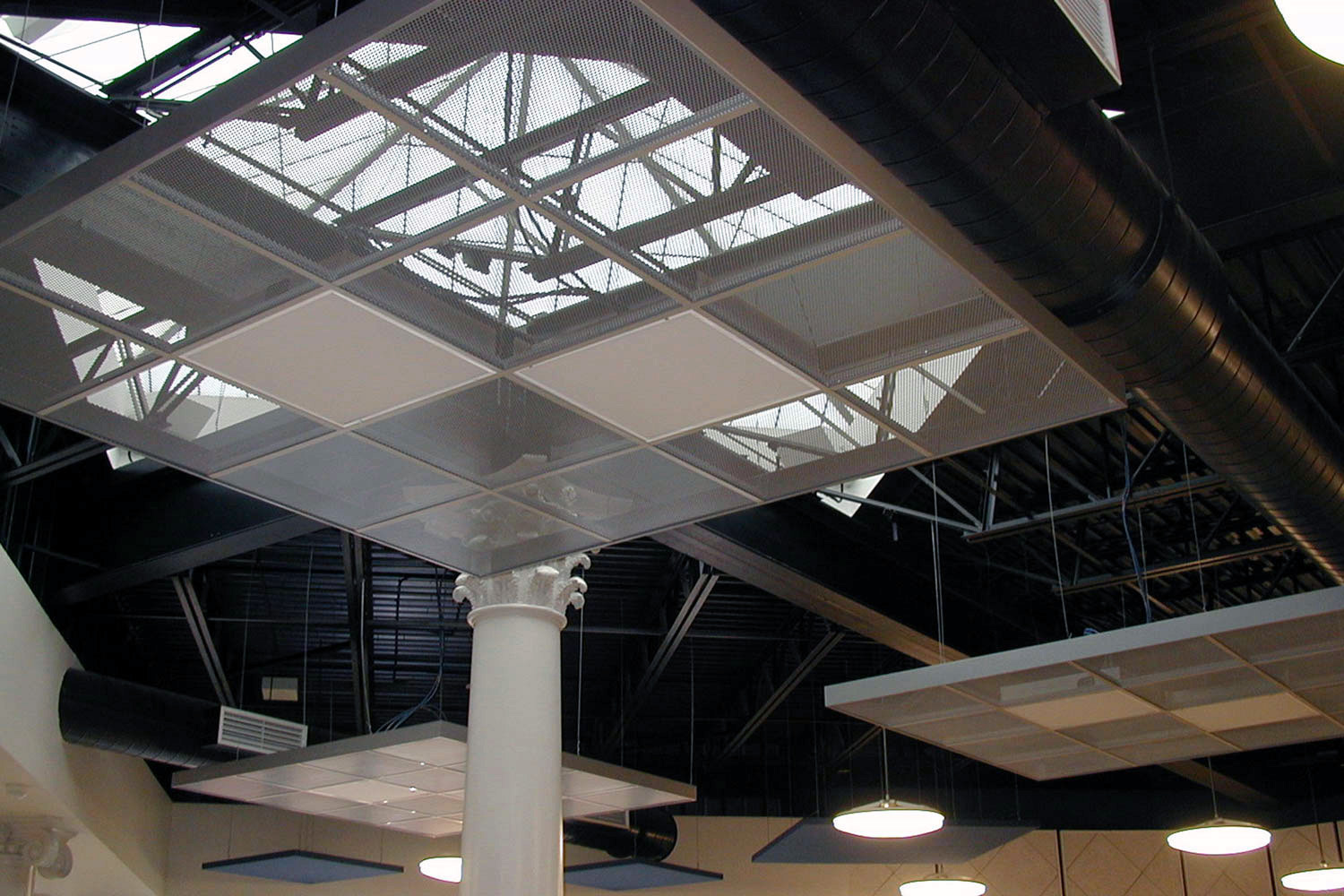

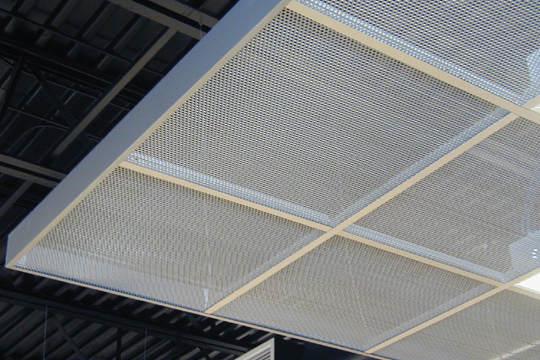

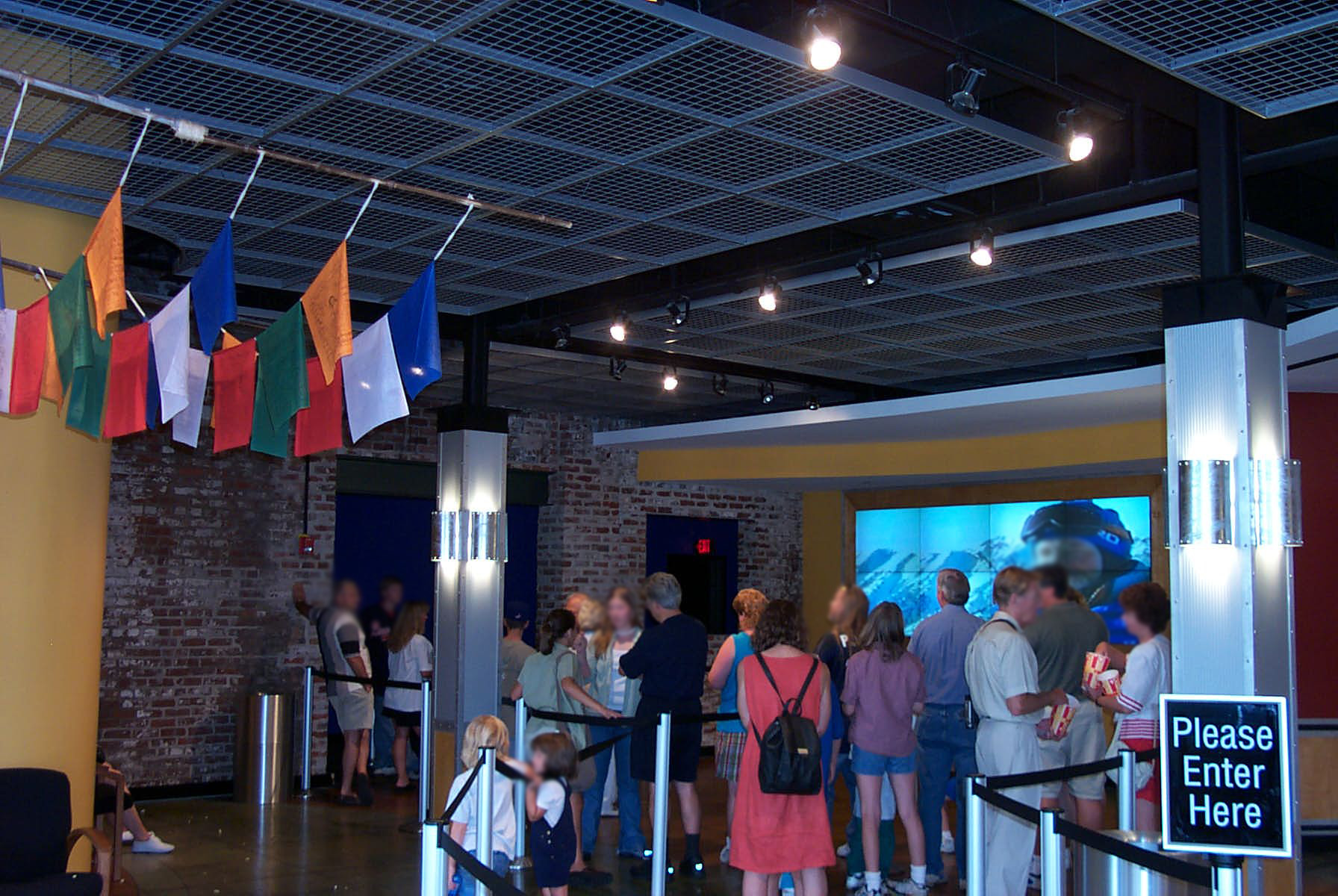

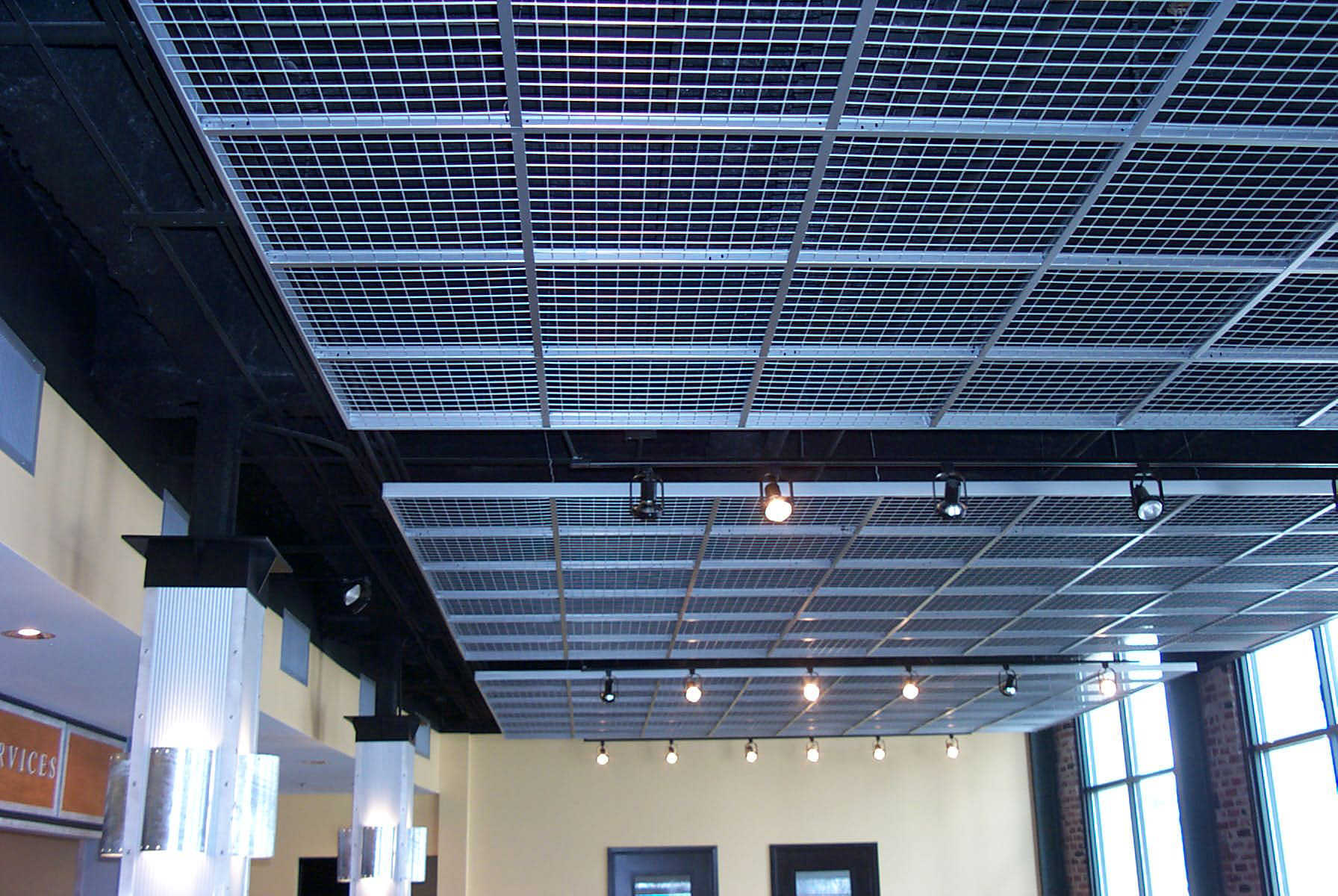

The "Cloudliner" Perimeter Trim System product family provides exciting three dimensional appearance and stunning depth to otherwise non-descript floating ceilings.

Technical specifications


TRIM SIZES:
Stocking are 2”, 4“ & 6”.
Standard are 2”, 4“, 6”, 8”, 10“ & 12”.
Non-Stocking are in 1” Increments to 24“.
Custom Profiles Available.
Standard Length is 12’ for Straight Sections.

FINISHES:
Standard 180° Finishes are White, Satin Silver, or Gun Metal. (360° Finishes Available as Non-Standard.)
Custom Painted are Polyurethane Epoxy.
Premo Wood Laminate are Maple, Cherry, and Walnut (180° Only).

FIRE CODE:
Perimeter is Class 1 Material per ASTM-E84. Fire-Rated T-Bar Suspension Available Upon Request.

MATERIAL:
Recommended Minimum for Flange legs of Cloudliner Profile is 1/16” Thickness Aluminum.

LEEDs:
Up to 90% for Aluminum , 20% Galvanized.

CLOUDLINER TYPES


CL -- Straight Trim
Standard Perimeter Trim System. Vertical Orientation.
CLR -- Curved Trim
Curved (Radiused) or Undulating Perimeter Trim System. Vertical Orientation.
CLXT -- Extended Blade Trim
Sharp-Edged Perimeter Trim System. Horizontal Orientation.
CLREF -- Reveal Edge Trim
Reveal Edge Perimeter Trim System. Vertical Orientation.
CLSE -- Scored Edge Trim
Scored Edge Perimeter Trim System. Vertical Orientation.
CLX2 -- Times Two
Doubled (Opposite Hand) Perimeter Trim System. Vertical Orientation. Available Straight or Curved/Radiused.
CLSO -- Standard Offset Trim
Offset (Transition) Perimeter Trim System. Vertical Orientation. Available Straight or Curved/Radiused.
CLCO -- Coffered Trim
Coffererd Perimeter Trim System. Vertical Orientation. Available Straight or Curved/Radiused.
