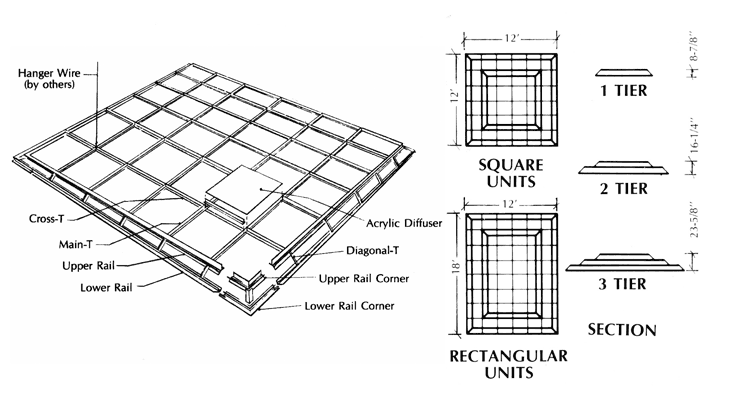

Stratalite illuminated ceiling systems provide a decorative skylight solution where plenum depths are minimal. Additional tiers can be added to accentuate the receding appearance.

Technical specifications

STRATALITE SECTION: Rails- 11/2"x3" extrusions. Tees- 11/2"xl" extrusions.

STRATALITE MODULE: See Stratalite Data in PDF.

FINISHES: Standard is black (F42). Custom colors are (F47) all finishes are polyurethane epoxy.

PLENUM: See Stratalite Data in PDF.

FIRE CODE: Metal- non-combustible. Lense- flame spread: 25 or less -smoke contributed: 50 or less.

MATERIAL: Metal- 0.024" galvanized steel. Lense- 100% virgin acrylic.
