Technical specifications
PERIMALITE SECTION: 1 "x 1" beams.
PERIMALITE MODULE: See Perimalite Data in PDF.
FINISHES: (Frame) Standard is black (F42). Custom colors are (F47) all finishes are polyurethane epoxy. (Lense) Standard is Translucent or Clear, Colored or Custom available
PLENUM: See Perimalite Data in PDF.
FIRE CODE: Frame- non-combustible. Lense- flame spread: 25 or less -smoke contributed: 50 or less.
MATERIAL: Frame- 0.024" galvanized steel. Lense- 100% virgin acrylic.

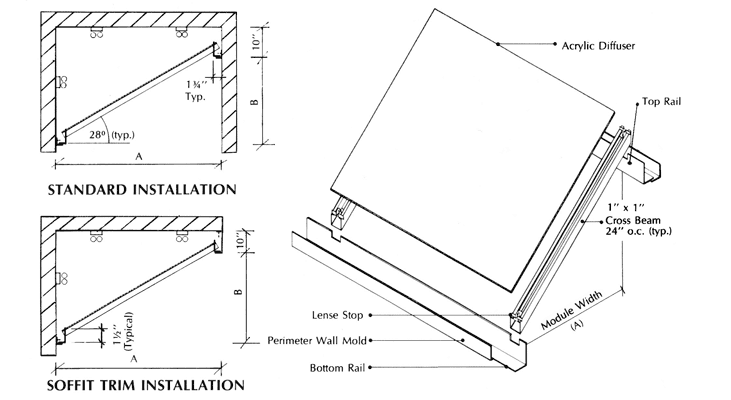

INSTALLATION
