Technical specifications
PANEL SIZES:
Standard Width and Length Varies by Profile. See Profile Sheets for Specifications.

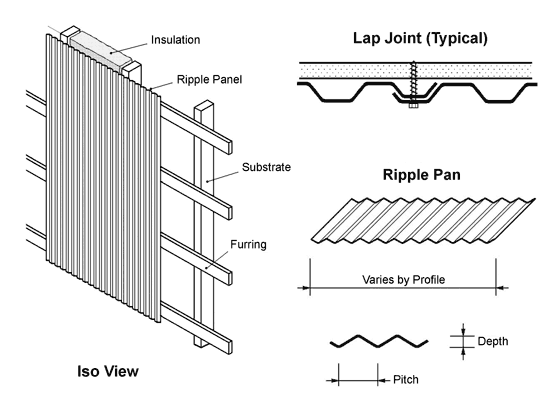

PROFILE:
20 Different Profiles Available. See Profile Sheets for Specifications.
FINISHES:
Standards are Mastic White, Baron Ivory, Victorian Gray, or Mill Finish.
PERFORATION:
Standard is 1/8" Round Holes on 21/64" Staggered Centers, 14% Open Area.
INSULATION:
Standard is 2" thk., Sealed in Black Poly Bag. Other Thicknesses Available.
FIRE CODE:
Class 1 Material (ASTM E84).
MATERIAL:
Aluminum or Galvanized Steel. See Profile Sheets for Appropriate Thickness.
LEEDs:
Up to 90% Recycled Content (Aluminum).
Installation
