Linear Plank


Linear Plank Metal Ceilings offer an unpretentious, distinctive look and require very little plenum depth. The interlocking panels and butt-edge panel jointss utilized in this linear metal ceiling system make it an excellent choice for use in exterior canopies, entryways, breezeways, and walkway canopy ceilings. This system is available as either a solid (non-perforated) linear metal plank, or it can be provided with acoustical/ventilation perforations for your project.

Technical specifications


PAN SIZES: 2",4",6",8",10",12", up to 24".

FINISHES: Standard are polyester coil coated. Custom are polyurethane epoxy. Mirrored are polished brite. Faux Wood Grain finishes available.

PLENUM: 4" recommended w/a HVAC or lights, 2" recommended w/HVAC or lights.

ACOUSTICAL: We offer a wide range of perforation options.

FIRE CODE: Non-combustible.

MATERIAL:
0.020" thick aluminum (interior)
0.025" thick aluminum (exterior)
0.032" thick aluminum (medium duty)
0.040" thick aluminum (heavy duty)

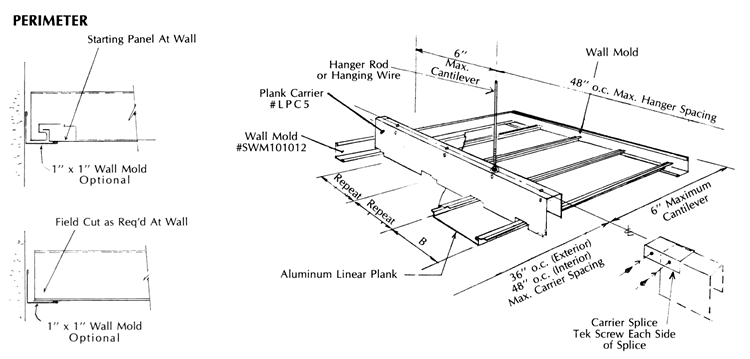

INSTALLTION

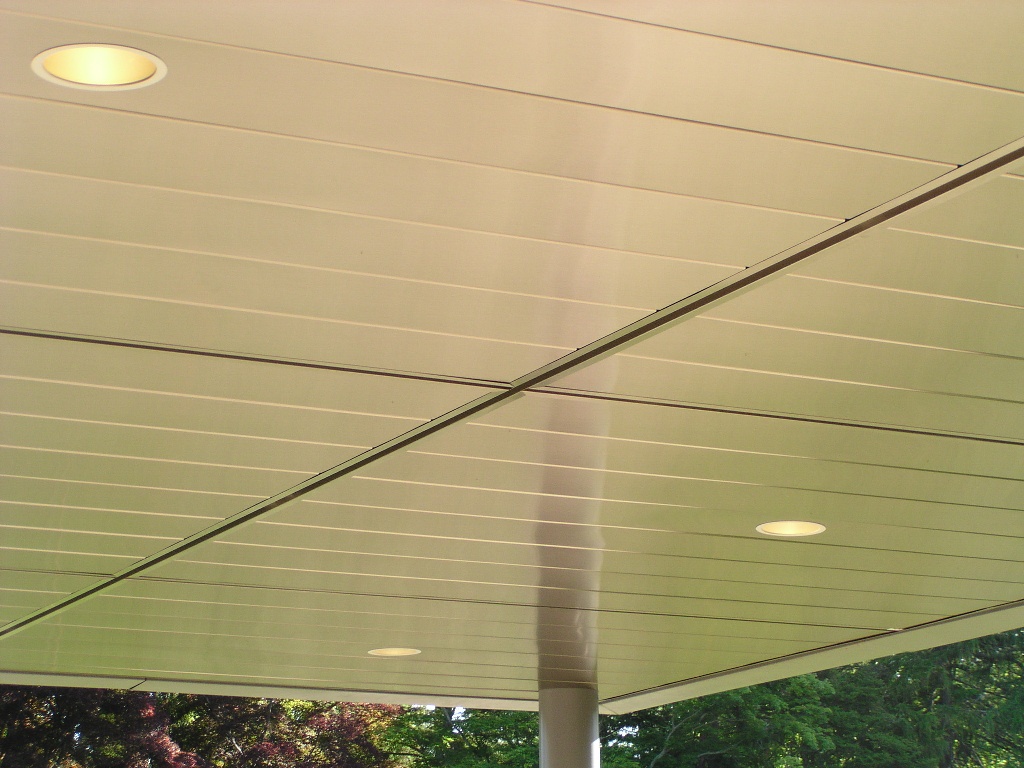

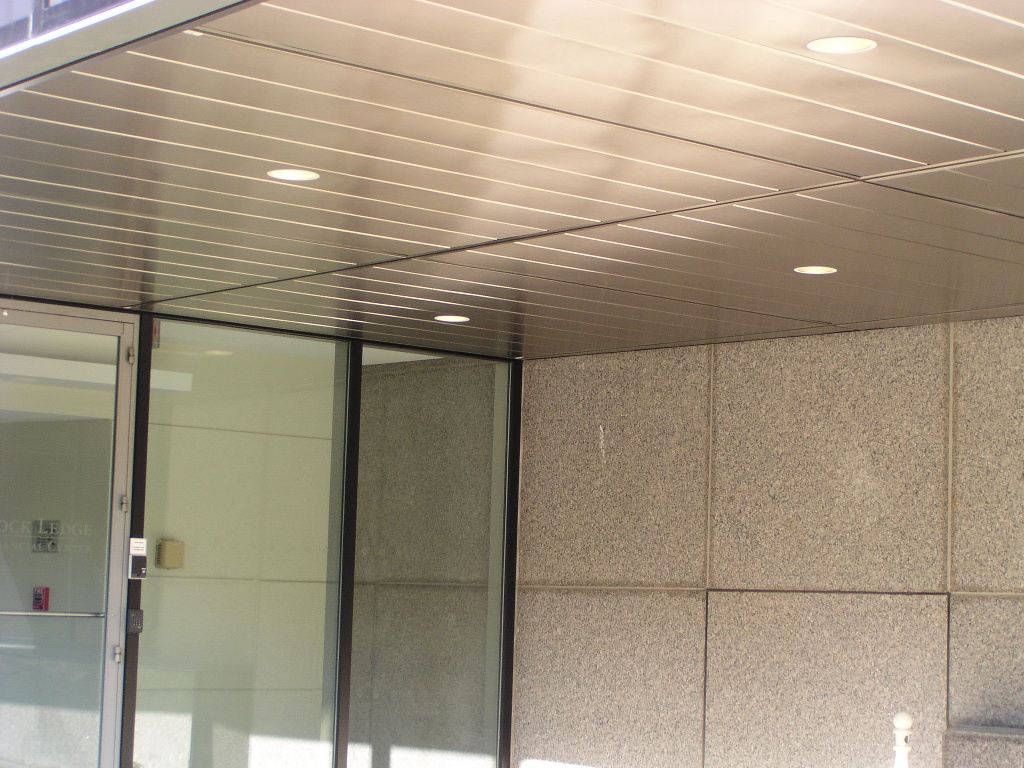

Linear Plank Interior and Exterior Metal Ceiling System
