Technical specifications

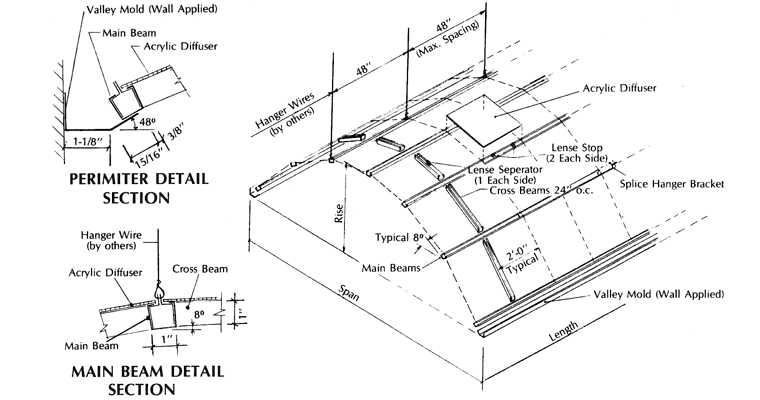

TUNNELITE SECTION: 1 "x 1" beams.
STRATALITE MODULE: See Tunnelite Data in PDF.
FINISHES: Standard is black (F42). Custom colors are (F47) all finishes are polyurethane epoxy.
PLENUM: See Tunnelite Data in PDF.
FIRE CODE: Metal- non-combustible. Lense- flame spread: 25 or less -smoke contributed: 50 or less.
MATERIAL: Metal- 0.024" galvanized steel. Lense- 100% virgin acrylic.
INSTALLTION
