Technical specifications

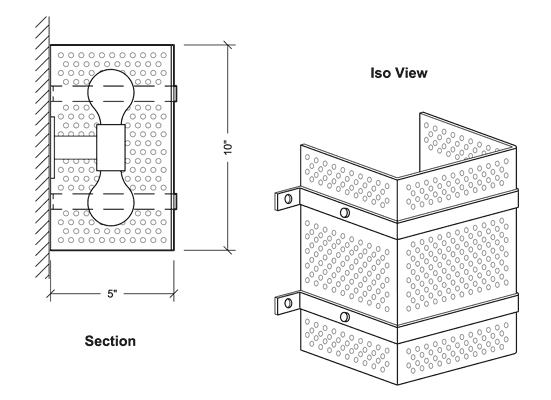

UNIT SIZES: Standard is 10" high X 6" wide x 5" deep. Custom sizes available.
FINISHES: Standards are Mastic White. Anodized PXL or Gun Metal. Custom painted are polyurethane epoxy. Mirrored/Brushed are polished brite.
PERFORATION: 1/4" holes on 1/2" staggs..
DIFFUSER: Standard is white translucent fabric. Optional translucent polycarbonate.
FIRE CODE: Class 1 Material (ASTM E84).
MATERIAL: Adequate thickness Aluminum.
LEEDs: 70% Recycled Content.
INSTALLTION
