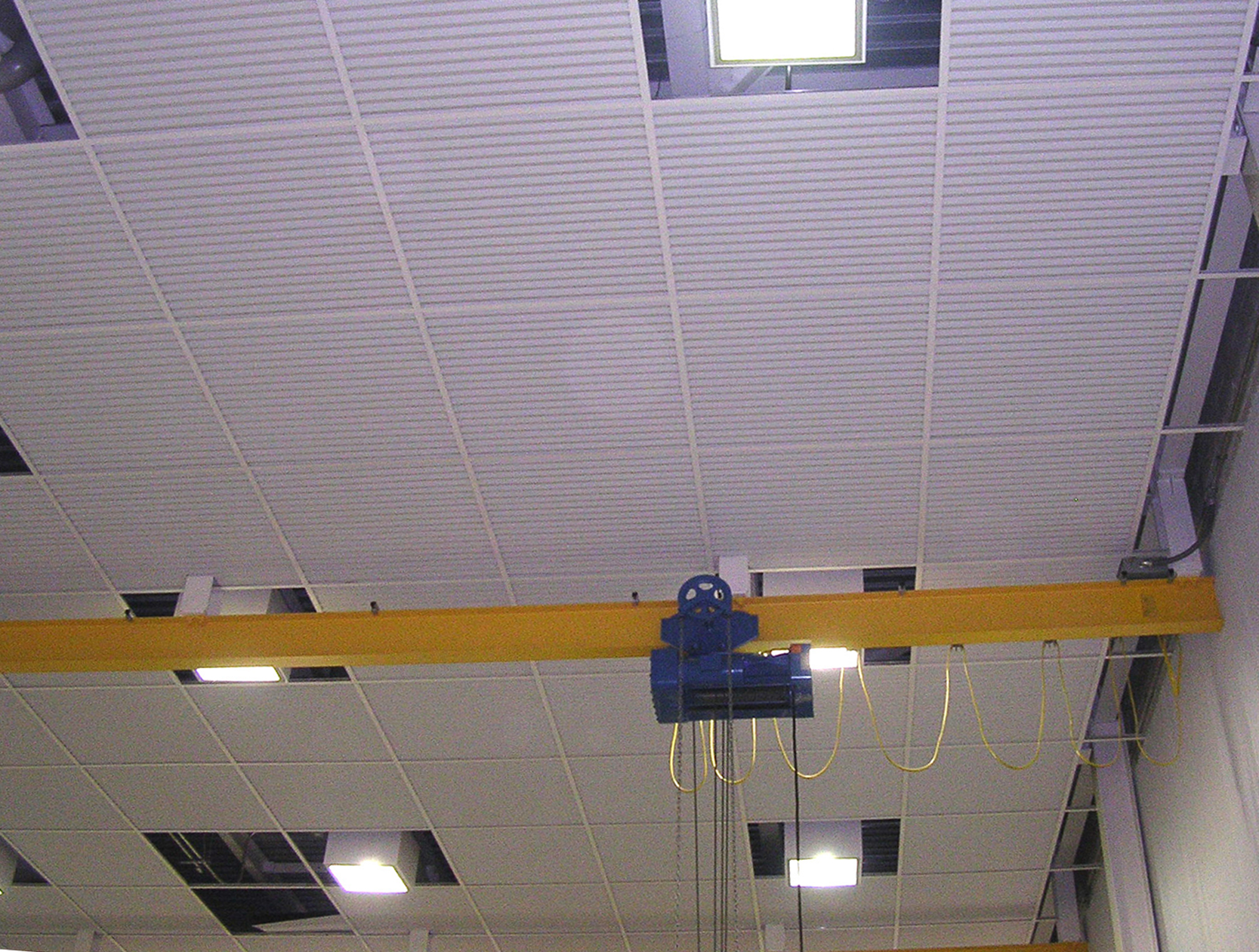

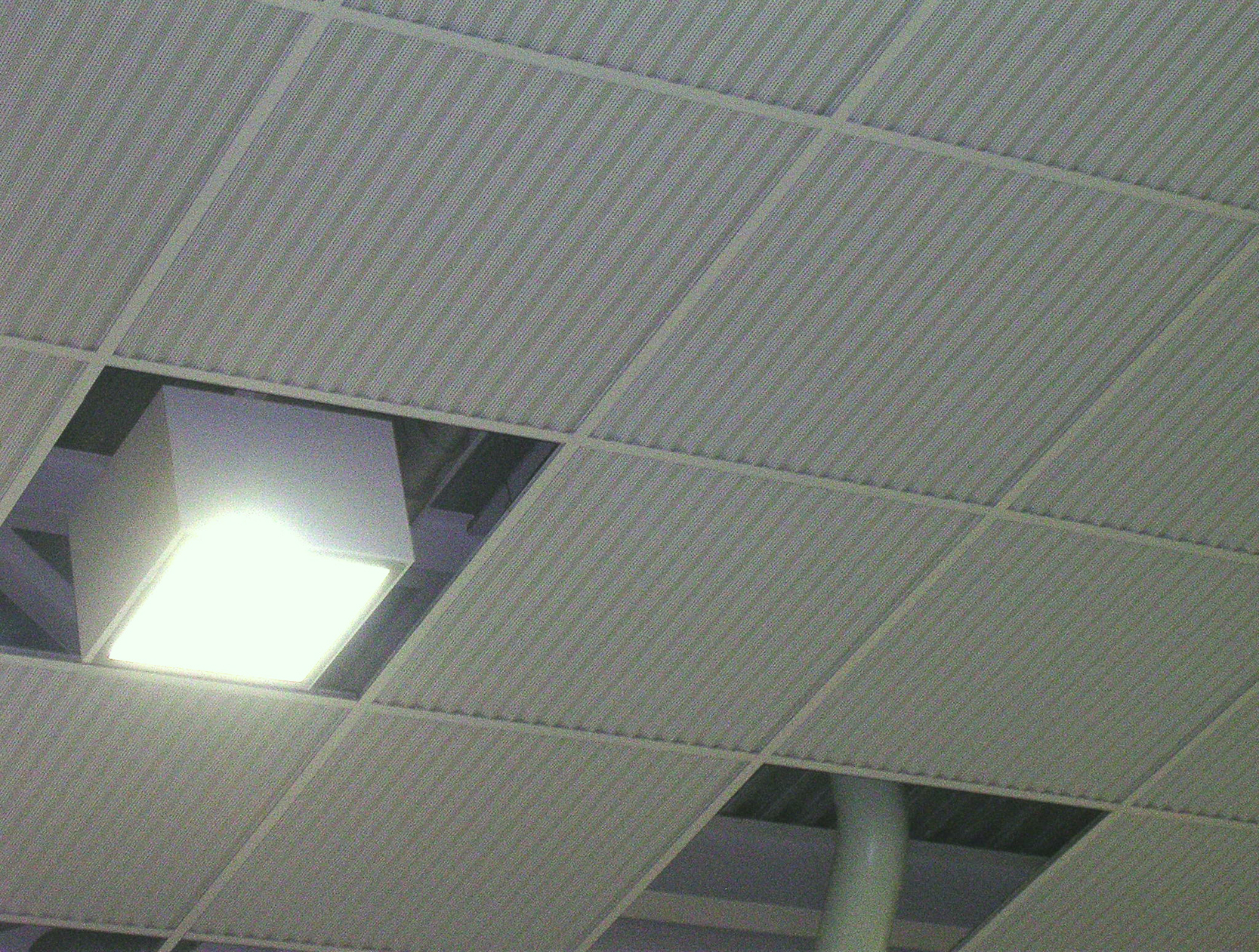

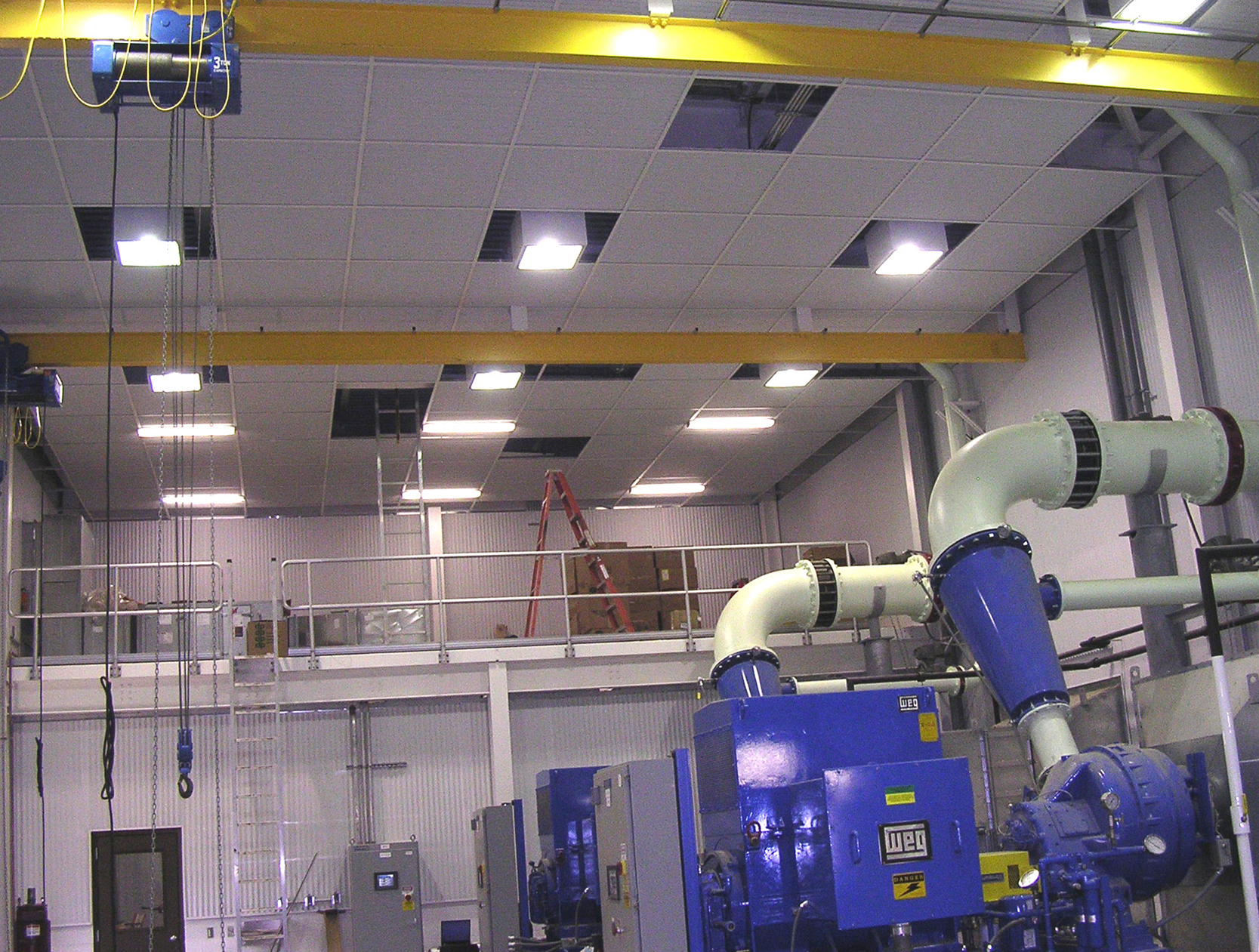

Ripple Grid

Ripple Grid is an economical and cost-effective way to address issues of noise abatement while arriving at a distinctive look either indoors or out.

PANEL SIZES:
Standard Width and Length Varies by Profile. See Profile Sheets for Specifications.

PROFILE:
20 Different Profiles Available. See Profile Sheets for Specifications.

FINISHES:
Standards are Mastic White, Antique Ivory, Victorian Gray, or Mill Finish.
Custom & Color-Matching Available

PERFORATION:

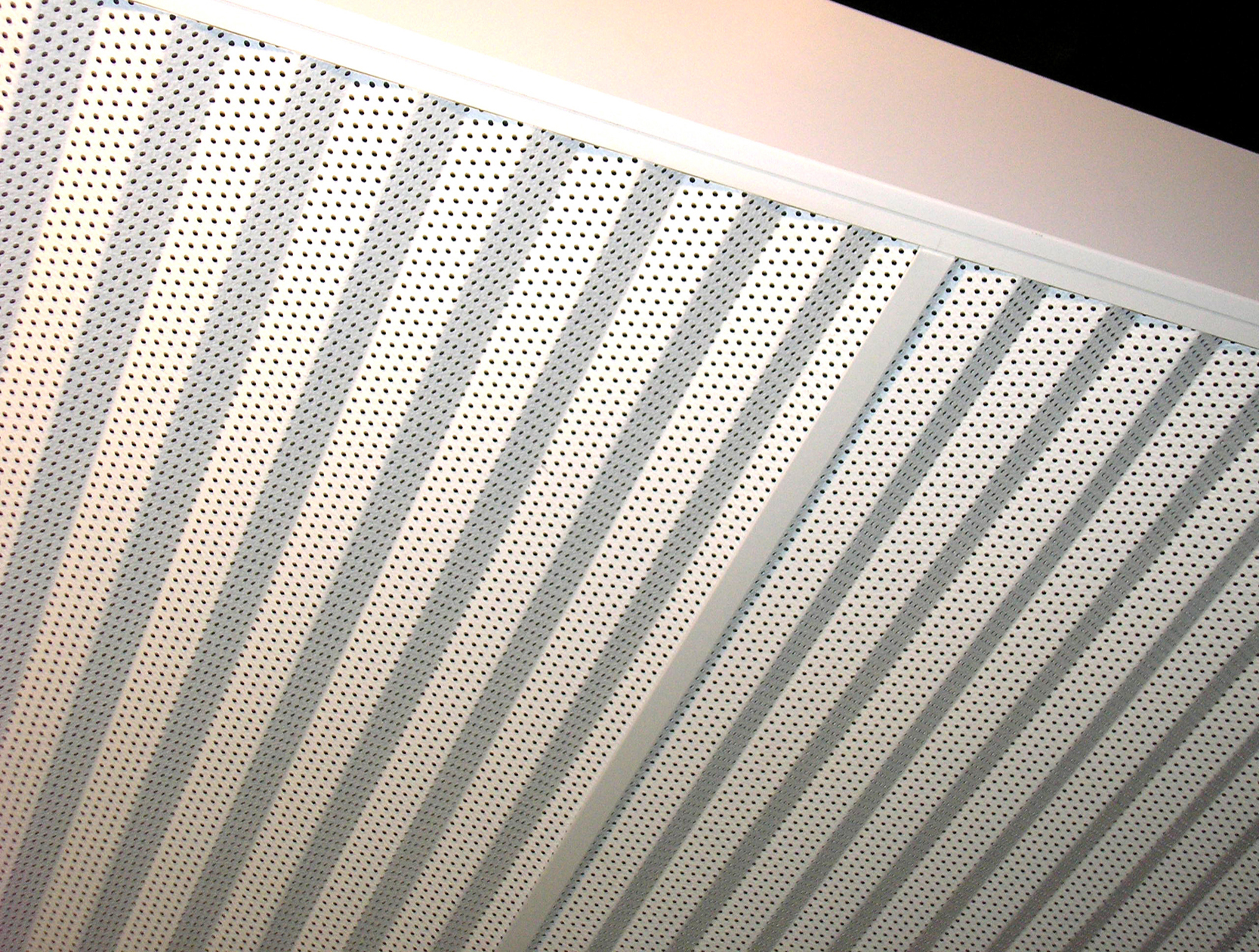

Standard is 1/8" Round Holes on 21/64" Staggered Centers, 14% Open Area.

INSULATION:
Standard is 2" thk., Sealed in Black Poly Bag. Other Thicknesses Available.

FIRE CODE:
Class 1 Material (ASTM E84).

MATERIAL:
Aluminum or Galvanized Steel. See Profile Sheets for Appropriate Thickness.

LEEDs:
Up to 90% Recycled Content (Aluminum).
