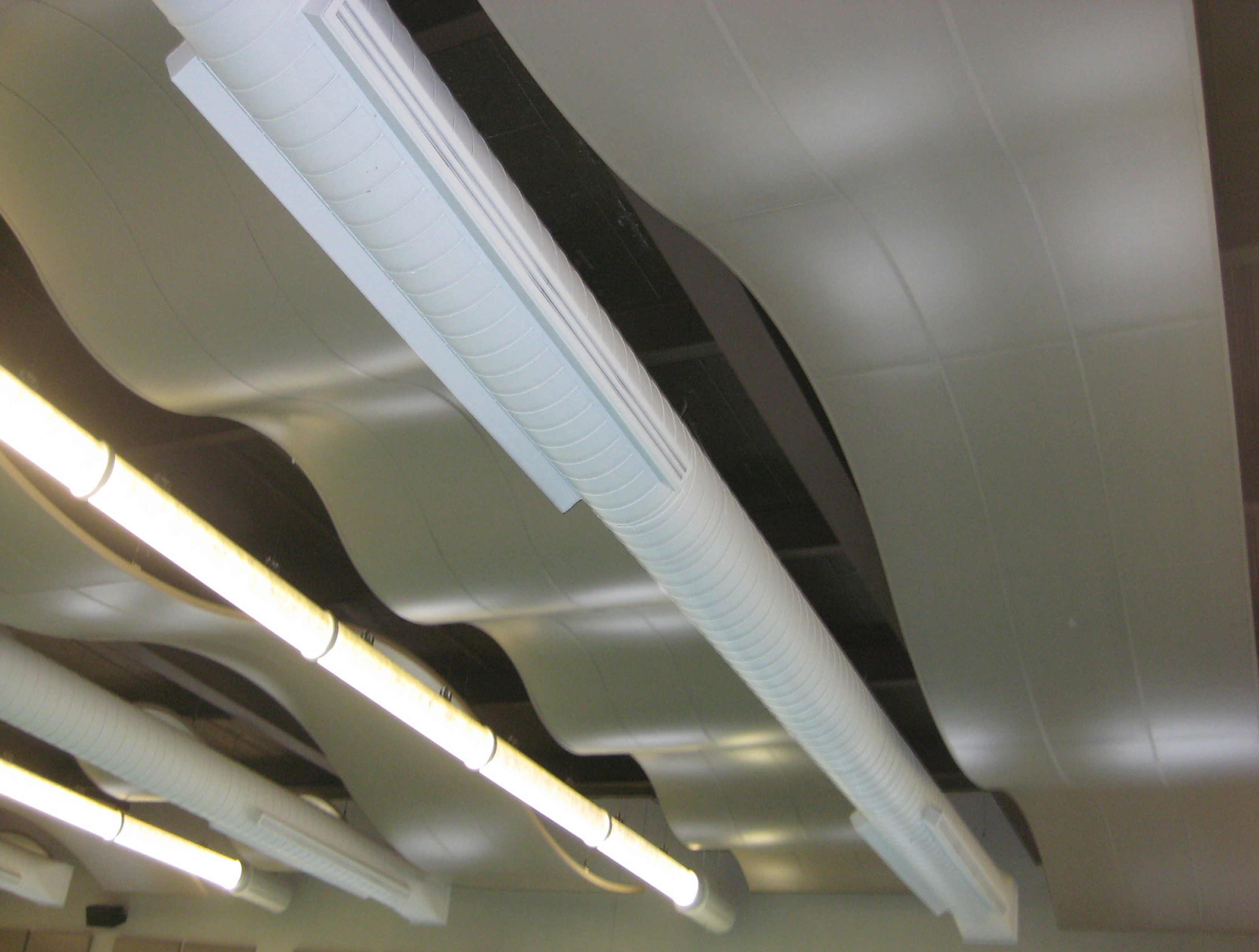

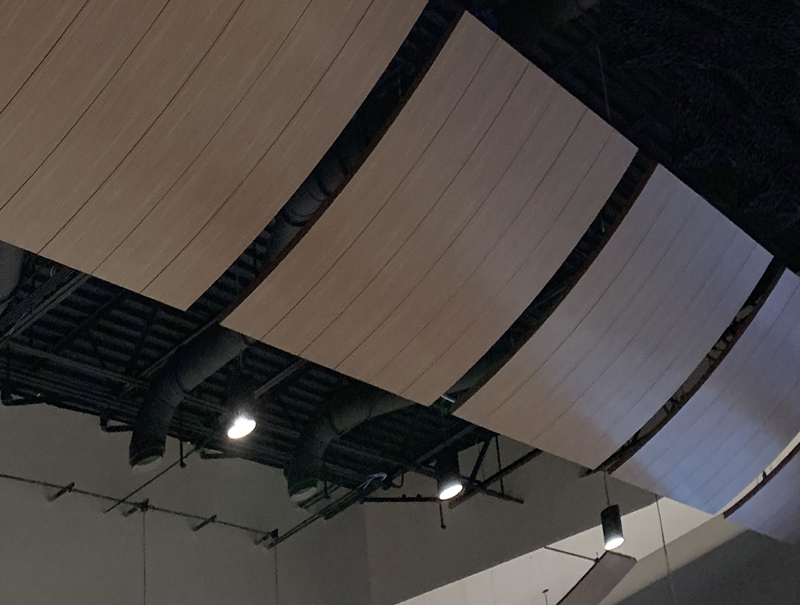

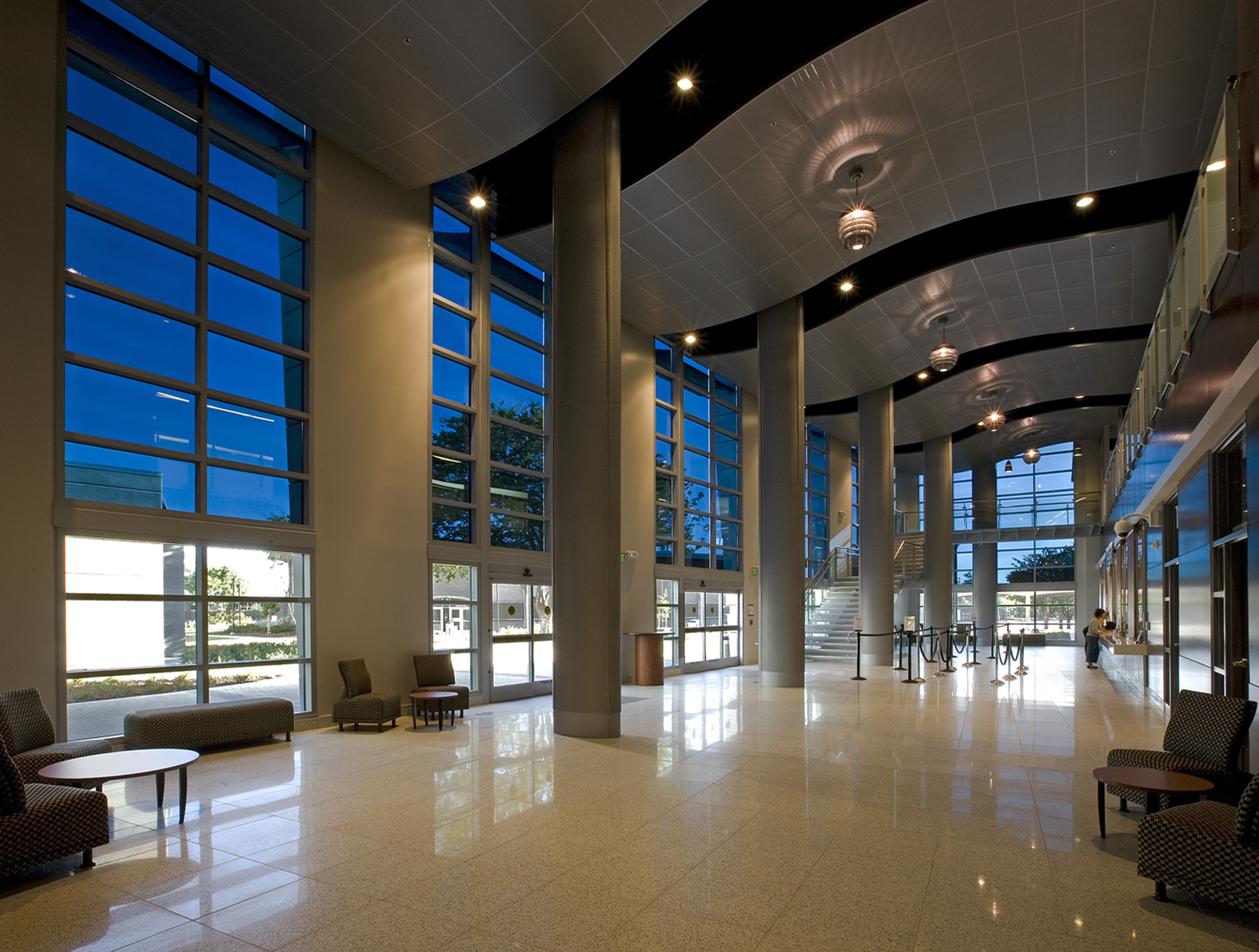

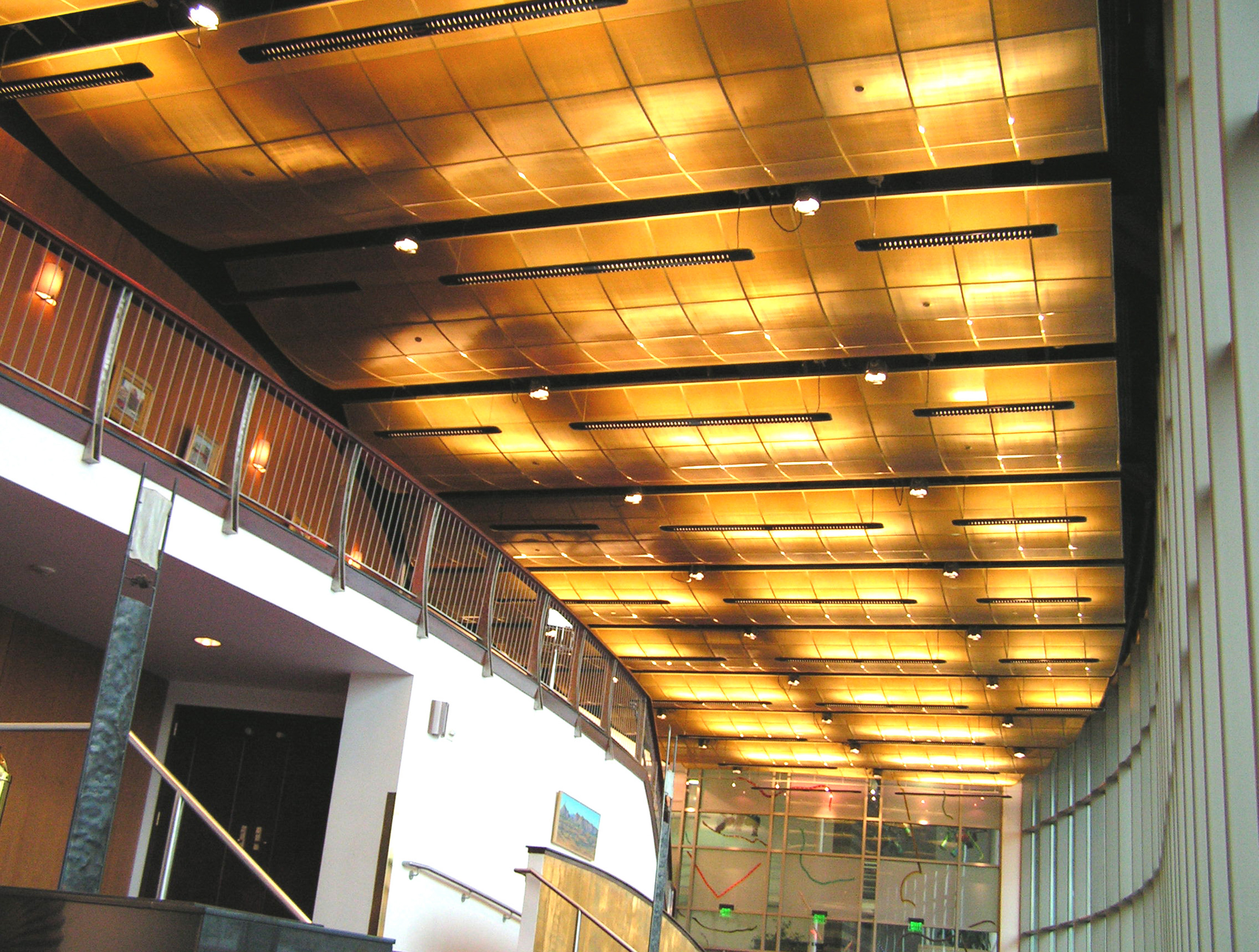

THE WAVE


The Wave curved metal panel system allows the designer to add an innovative 3-dimensional treatment to the ceiling plane. Curves, complete or partial barrel vaults, undulations, and flat areas can be blended together to form unique applications. Totally complete systems are pre-engineered and factory fabricated, ready to install.

Technical specifications


STANDARD PANEL SIZES:
2' x 2'
2' x 4'
2' x 6'.

CUSTOM SIZES:
1' x 1' up to 4' x 10' Available.

PROFILE:
Standard-T: 15/16" Face
Macro-T: 1-3/8" Face
Elite-T: 9/16" Face w/ reveal
Micro-T: 9/16" Face.

FINISHES:
Standard are White, Satin Silver, or Gun Metal.
Custom Painted are Polyurethane Epoxy.
Premo Wood Laminate are Maple, Cherry, and Walnut.

FIRE CODE:
Panel is Class 1 Material per ASTM-E84. Fire-Rated T-Bar Suspension available upon request.

MATERIAL:
Panel: Appropriate Thickness Aluminum
Suspension: 0.063" thk. Aluminum.

Recycled Content:
Up to 90% for Aluminum Panel

Installation

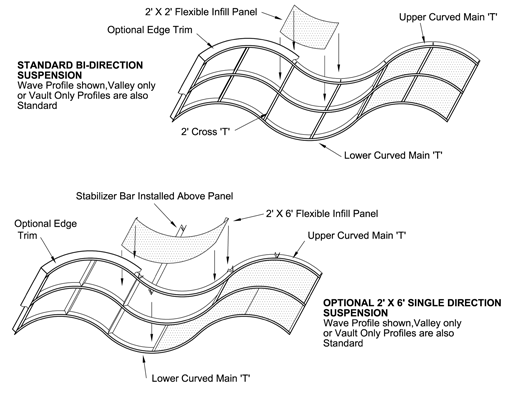

The Wave Detail
