Linear Deep Pan

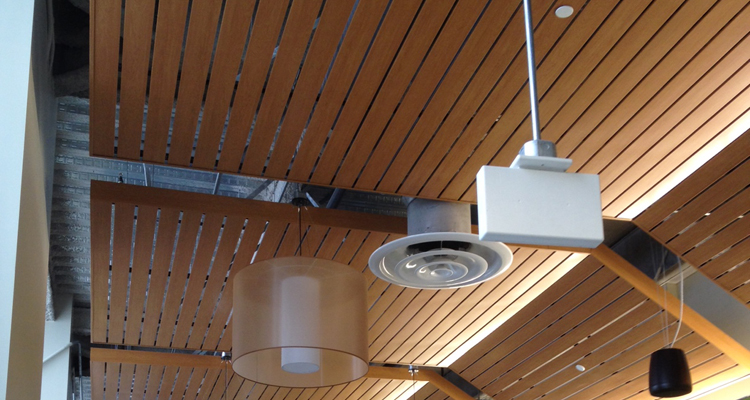

Linear Deep Pan ceiling systems are available in a variety of finishes to suit almost any design, adding a 3-dimensional play of light and shadows.

Technical specifications


PANEL SIZES:  Standard Depth is 1". Standard widths are 6” and 8” by 144” length. Optional widths are 2” increments from 2” to 24”.

FINISHES: Standard are polyester coil coated. Custom painted are polyurethane epoxy. Mirrored / Brushed are polished.

ACOUSTICAL: We offer a wide range of perforation options.

PLENUM: 8” recommended.

FIRE CODE: Class 1 Material per ASTM E84.

MATERIAL: Aluminum, adequate thickness to maintain flatness. Perforations, see product PDF.

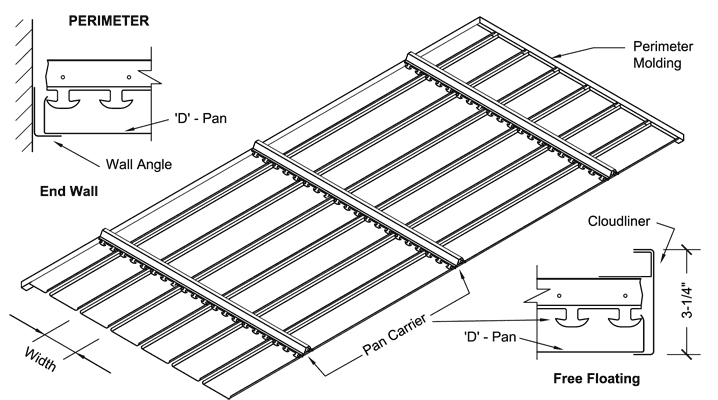

INSTALLTION


Linear Deep Pan
