Linear Pan


Linear Pan Metal Ceilings create a graphically parallel surface delineation. Scale of lines can be altered by controlling pan widths, which may vary from 2" to 12". Design flat, curved, barreled,or undulating ceilings with this versatile system! Linear Pan can be utilized for wall applications as well. Linear Pan is 100% accessible by removing any panel(s) for entry into the ceiling plenum.

Technical specifications


PAN SIZES:
2", 4", 6", 8", 10", 12", up to 24".

FINISHES:
Standard are polyester coil coated.
Custom are Polyurethane Epoxy.
Mirrored are Polished Brite.
Wood Grain are Premo Laminate and Woody Powder Coated Finishes.

ACOUSTICAL:
We Offer a Wide Range of Perforation Options.

PLENUM:
4" recommended w/a HVAC or Lights, 2" Recommended w/HVAC or Lights.

FIRE CODE:
Non-combustible.

MATERIAL:
0.020" thick aluminum (interior)
0.025" thick aluminum (exterior)
0.032" thick aluminum (medium duty)
0.040" thick aluminum (heavy duty)

LEEDs:Up to 90% Recycled Content Available (Aluminum).

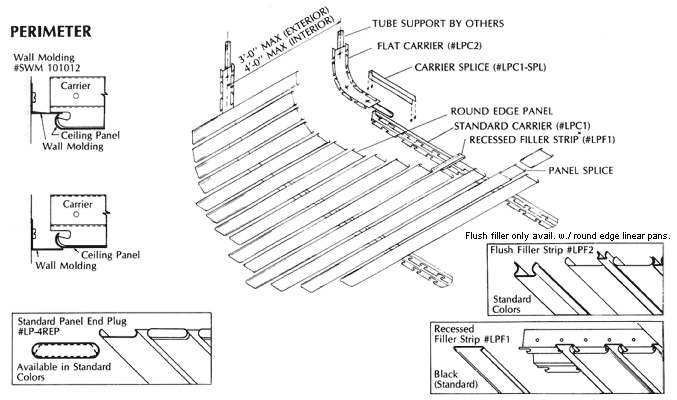

INSTALLTION


Linear Pan
