THE VAULT

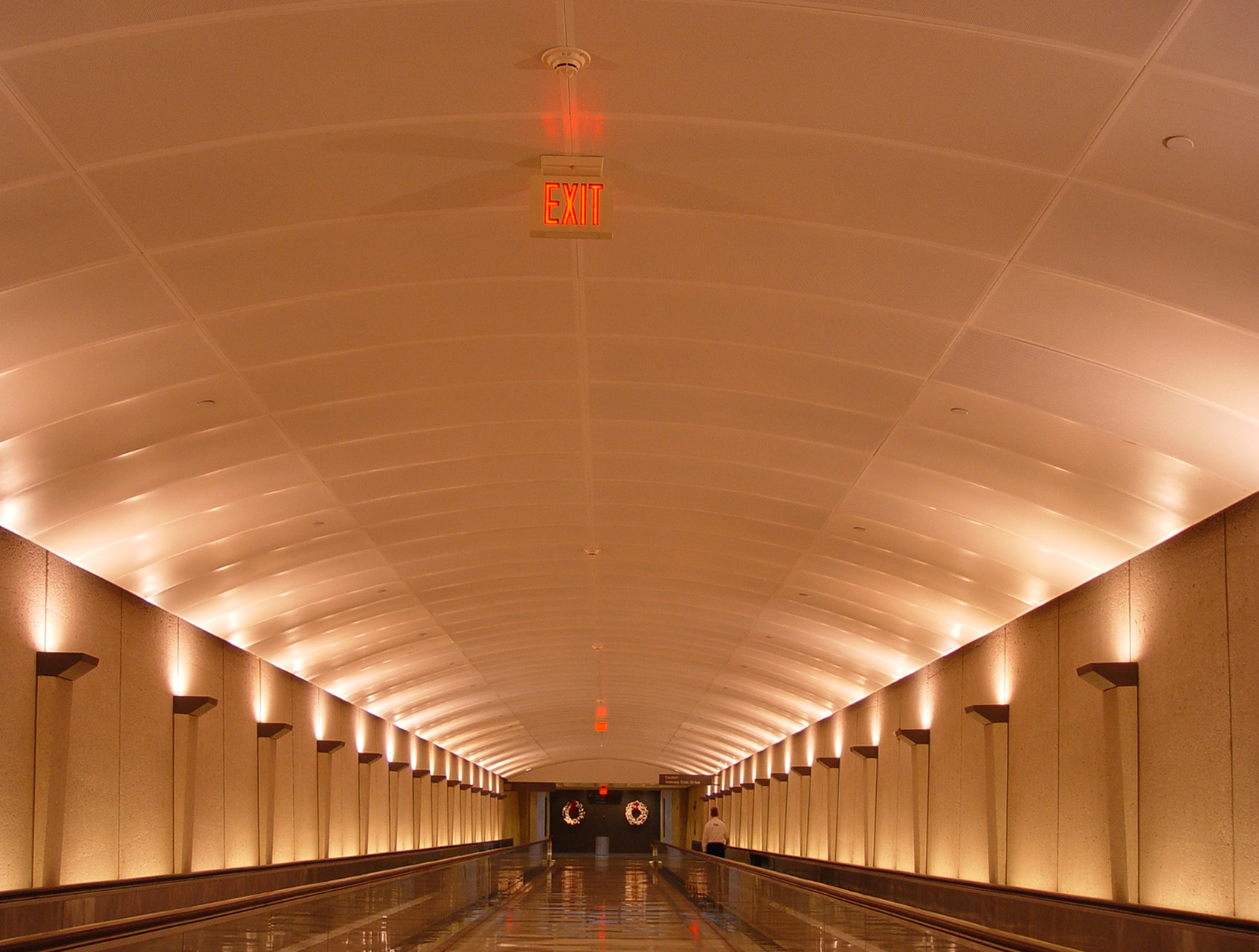

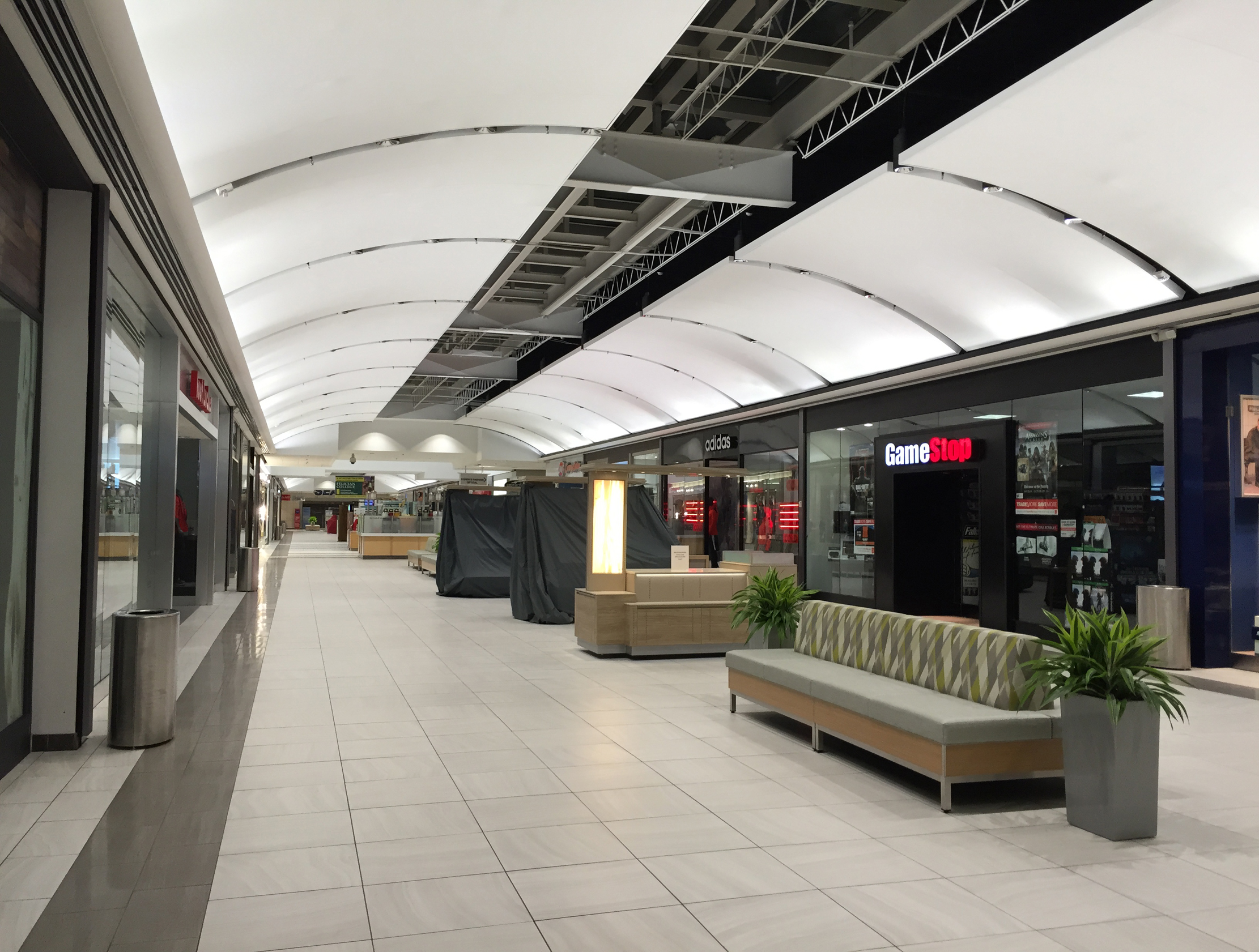

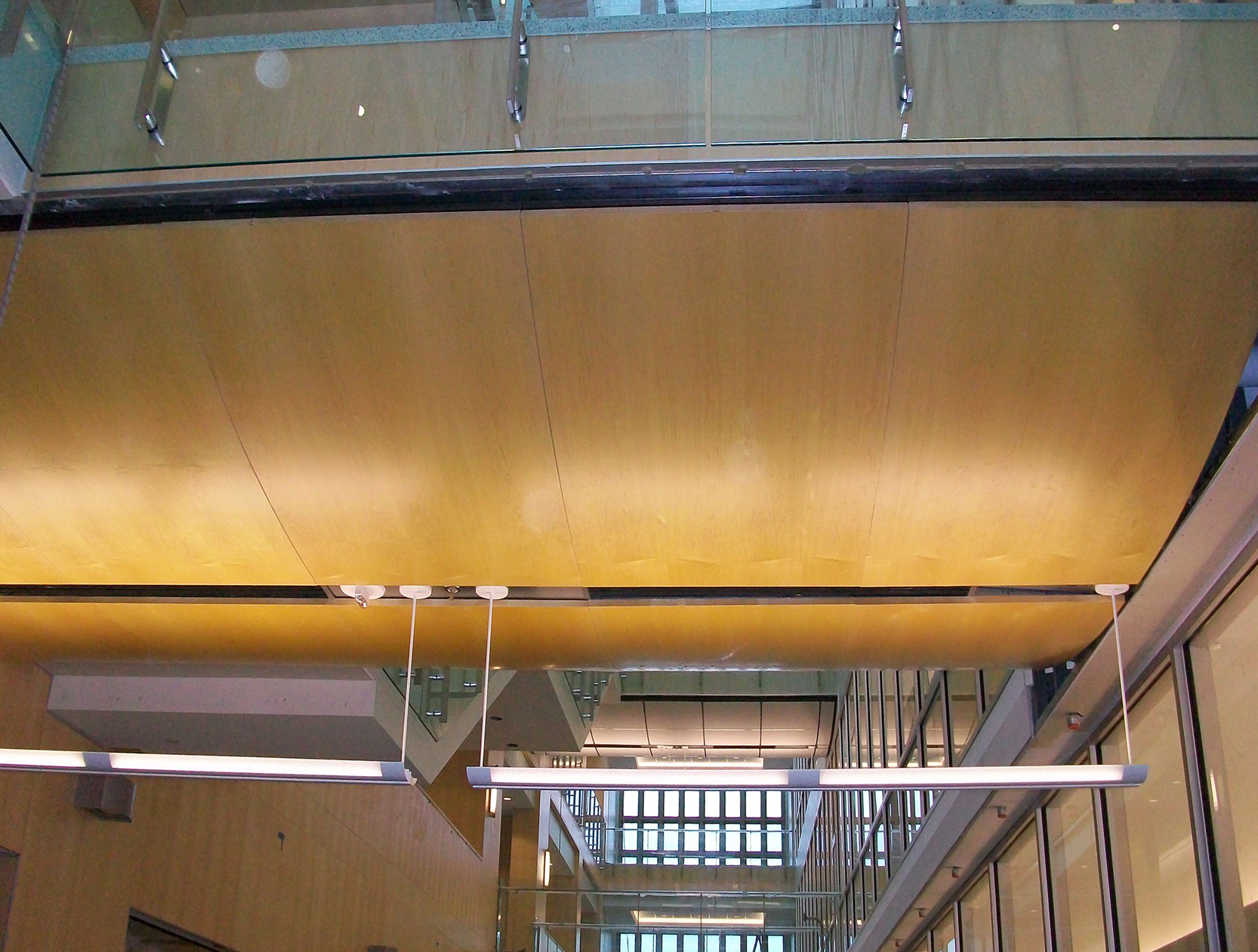

Our curved, torsion spring metal panel ceiling system allows the designer to create a remarkable and unique composition of sweeping arches, curves, and vaults. This radiused panel system can achieve a wide variety of looks by simply changing perforations and color. "The Vault" curved torsion spring metal ceiling systems are pre-engineered and factory fabricated, ready to install.

Technical specifications


PANEL SIZES:
Standards are 2' x 5' through 2' x 10'.
Optional are 1' x 1' through 4'x 10'.

FINISHES:
Standards are Mastic White (#F41M), Anodized PXL (F23C), or GunMetal (F253).
Custom Painted (#F47) are Polyurethane Epoxy.
Mirrored/Brushed/Etc. (#F2x) are Anodized.
Wood Grain Powder Coat (#F39)
Wood Grain Laminates (#F40).

PLENUM:
8" minimum.

PERFORATION:
See Vault Standard Perf. Selector.Custom, Aesthetic, and Graphical Perforations Also Available.

INSULATION:
Acoustical Insulation is Optional and Available.

FIRE CODE:
Class 1 Material (ASTM E84).

MATERIAL:
Aluminum of Appropriate Thickness.

LEEDs:
Up To 90% Recycled Content.

Installation

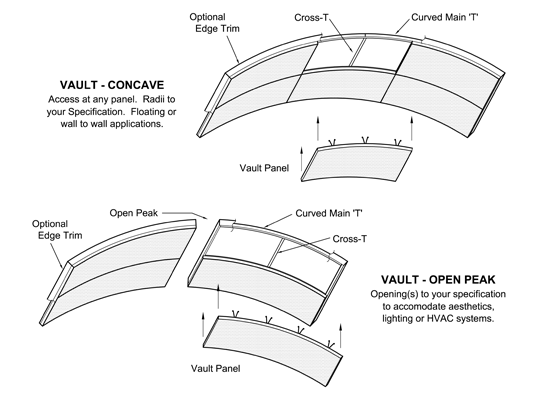

The Vault Curved Metal Ceiling Detail
