Grid Cell 600

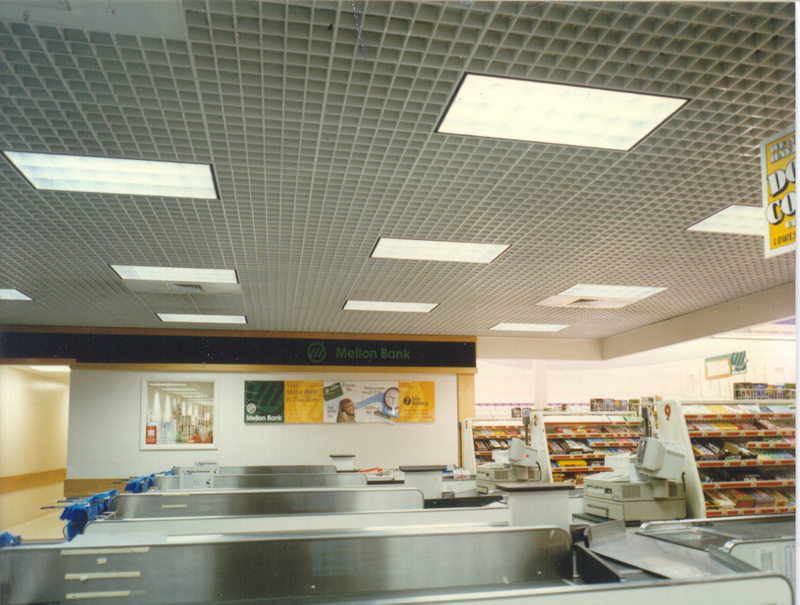

Our Grid Cell 600 Cellular Metal Ceiling System utilizes standard 15/16" ceiling grid systems to create a distinctive high-tech look which also offers easy accessibility via removable panels. An excellent choice for new construction or retrofit of existing ceilings!

Technical Sspecifications


PANEL SIZES:
Standard is 2' x 2'.
Optional are 2' x 4' to 4' x 4'.

BEAM:
0.024" thick Galvanized Steel or Aluminum

FINISHES:
Standard are Polyester Coil Coated.
Custom Painted are Polyurethane Epoxy.
Mirrored are Polished Brite.
Wood Grain are Premo Laminate and Woody Powder Coated Finishes.

PLENUM:
8" Recommended Minimum.

LOUVER:
0.020" thick Aluminum, Face is 3/8".

T-GRID:
0.024" thick Galvanized Steel, Face is 9/16.

FIRE CODE:
Non-Combustible. Fire-Rated Grid Available.

MATERIAL:
Cell- 0.020" thick Aluminum (Interior - Stnd. Duty).
Cell- 0.025" thick Aluminum (Intermediate Duty).

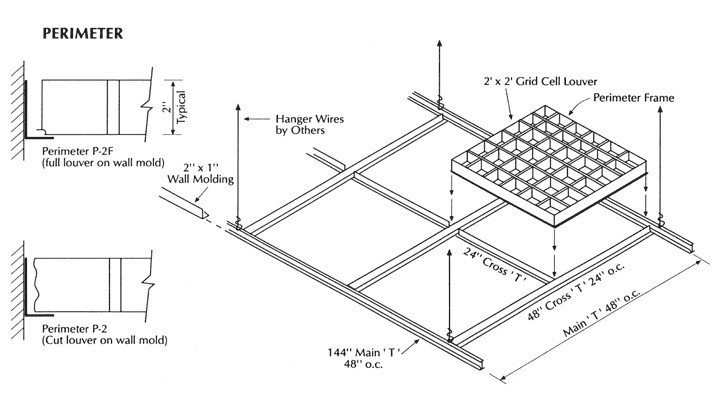

INSTALLATION


Open Beam
