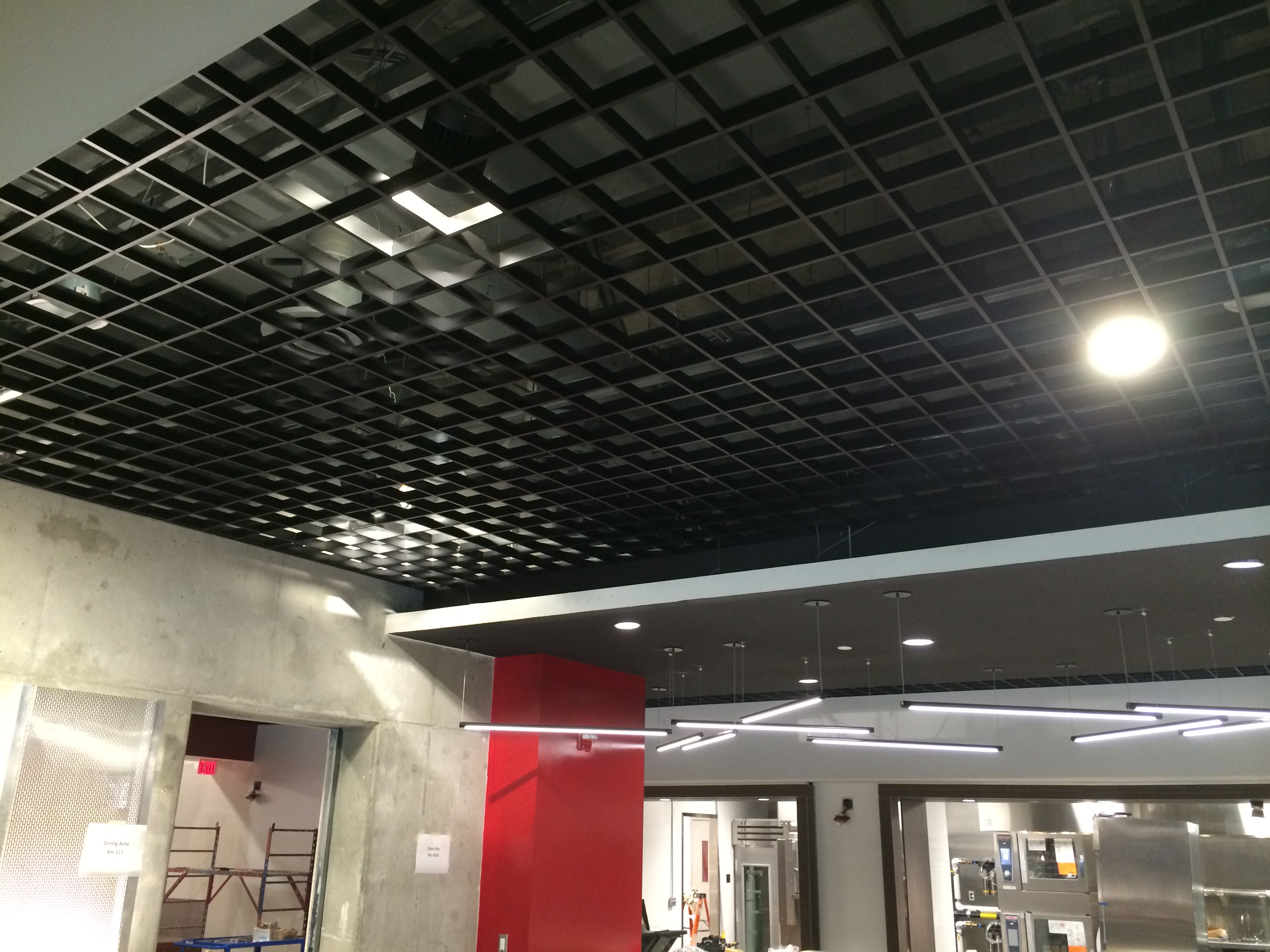

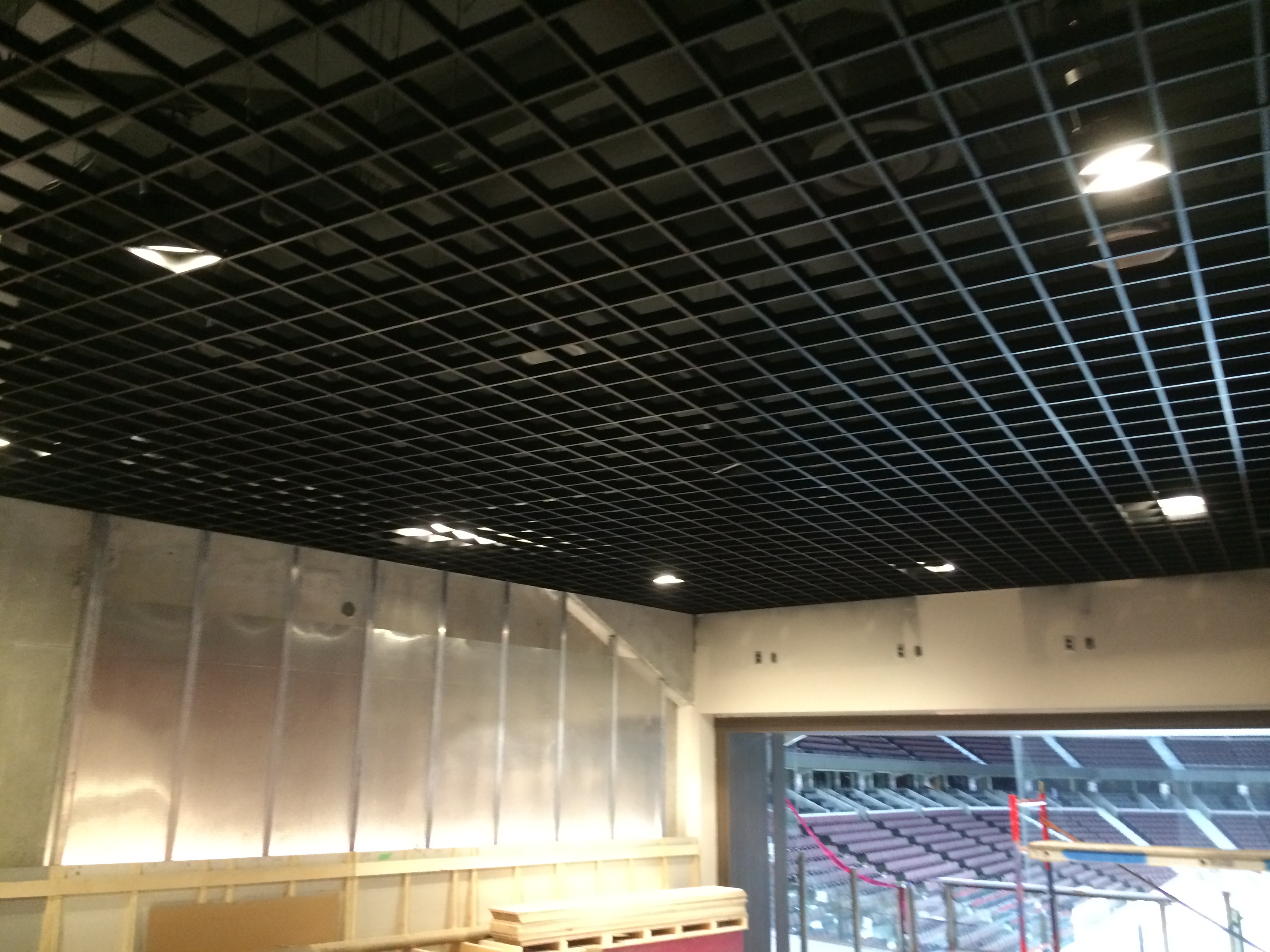

Grid Cell 900


Our Grid Cell 900 Cellular Metal Ceiling System utilizes standard 9/16" ceiling grid systems to create a distinctive high-tech look which also offers easy accessibility via removable panels. An excellent choice for new construction or retrofit of existing ceilings!

Technical Specifications


PANEL SIZES:
Standard is 2' x 2'.
Optional are 2' x 4' to 4' x 4'.

FINISHES:
Standard are Polyester Coil Coated.
Custom Painted are Polyurethane Epoxy.
Mirrored are Polished Brite.
Wood Grain are Premo Laminate or Woody Powder Coated Finishes.

PLENUM:
8"Recommended Minimum.

LOUVER:
0.020" thick Aluminum

T-GRID:
0.024" thick Galvanized Steel (Standard).
Aluminum Grid Available.

FIRE CODE:
Non-Combustible. Fire-Rated Grid Available.

LEEDs:
Up to 90% Recycled Content Available (Aluminum).

INSTALLATION

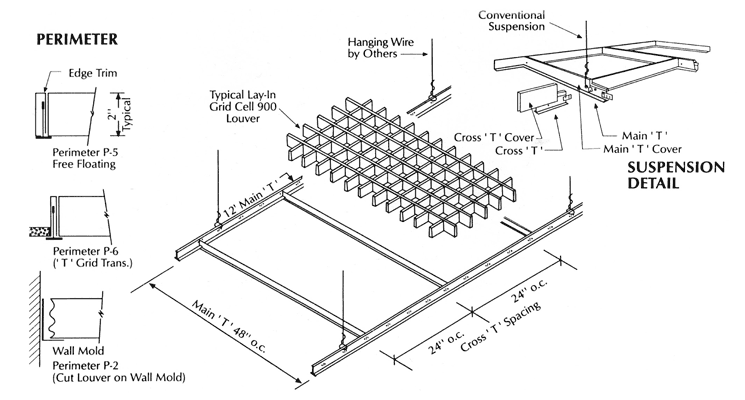

Open Beam
