Technical Specifications
PANEL SIZES:
Standard is nom. 2' x 2'.
Optional are nom. 1' x 1' to 4' x 4'.
BEAM:
0.024" thick Galvanized Steel or Aluminum
FINISHES:
Standard are White, Black, or Satin Silver.
Custom Painted are Polyurethane Epoxy.
Mirrored are Polished Brite.
Wood Grain are Premo Laminate and Woody Powder Coated Finishes.
PLENUM:
8" recommended minimum.
FIRE CODE:
Non-combustible. (ASTM E-84).
MATERIAL:
Louver- 0.020" thick Aluminum (Interior - Stnd. Duty).
Louver- 0.025" thick Aluminum (Intermediate Duty).

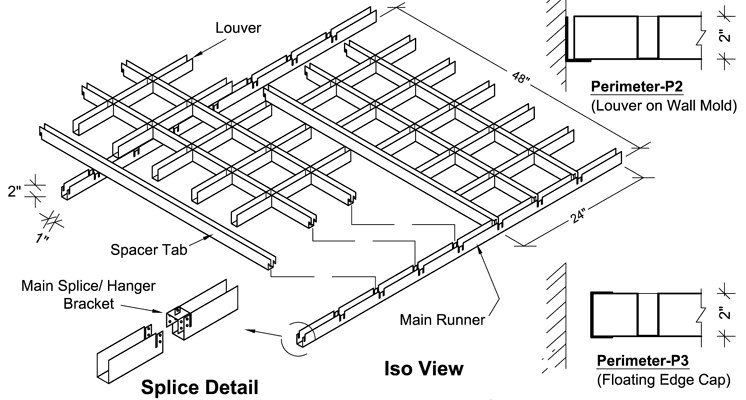

INSTALLATION
