Visions 100R


Wood Visions 100R provides an intriguing combination of the richness of wood with the ease of torsion spring panel installation. The various reveal widths allow for panel accentuation.

Technical specifications


PAN SIZES: Standard is 2' x 2'. Optional are l' x l' 10 3-112' x 10'.

STANDARD REVEALS: RO" 0"; Rl " liS"; R2" 114"; or R3" 3IS".

FINISHES: Standard a.e mig's Premo Wood Laminate. Premium are mIg's Re-al Wood Veneer.

PLENUM: 12" Recommended Minimum

FIRE CODE: Class 1 Material: per ASTM E84. Fire rated suspension available.

MATERIAL: 040" Thick Aluminum (Minimum) & Laminate. 024" Thick Galvanized (Minimum)'\ Laminate.

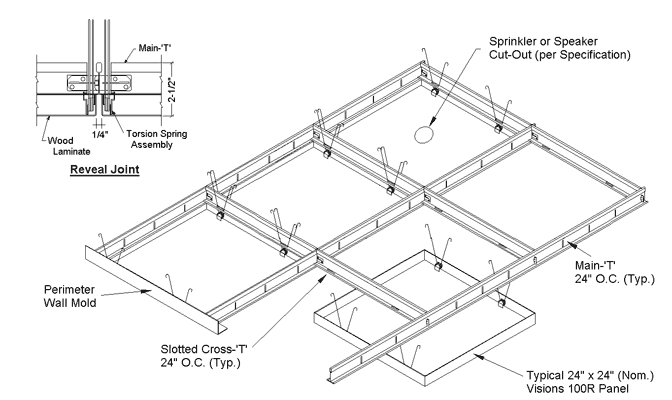

INSTALLTION
