Technical Specifications
PANEL SIZES:
Standard is 2' x 2'
Optional are: CONSULT ADC DESIGN TEAM
FINISHES:
Standard are Polyester Coil Coated. (#FSTD)
Custom Painted are Polyurethane Epoxy. (#F47)
Mirrored are Polished Brite. (#F08-Clear/#F07-Gold)
PLENUM:
4" Recommended without HVAC or Lights
12" Recommended without HVAC or Lights
FIRE CODE:
Non-Combustible; Fire-Rated Grid Also Available
MATERIAL:
0.025" Thick Aluminum (Interior)
0.032" Thick Aluminum (Int/Ext)
LEEDs:
Up to 90% Recycled Content Available (Aluminum)

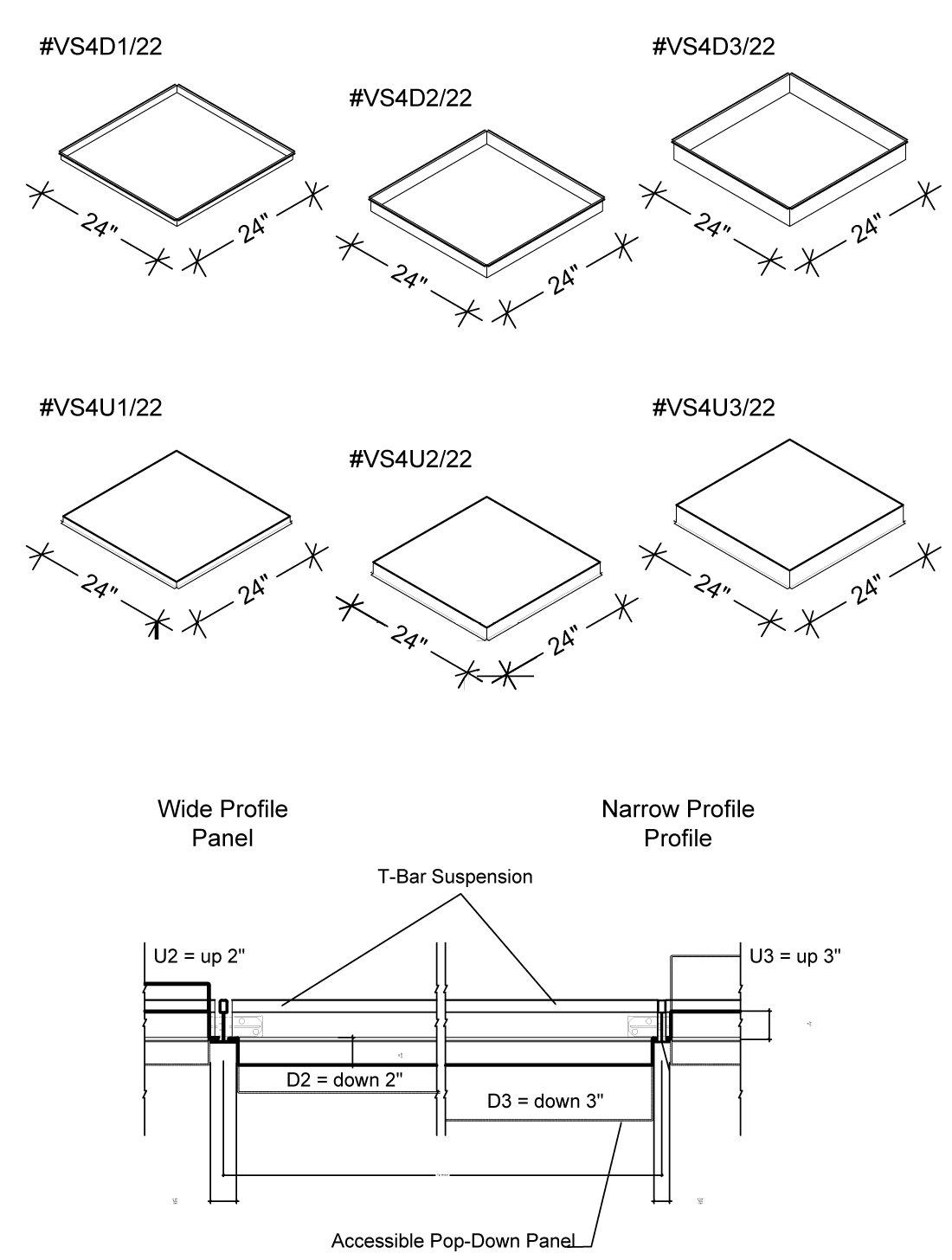

INSTALLTION
